Information & research about my air quality sensor

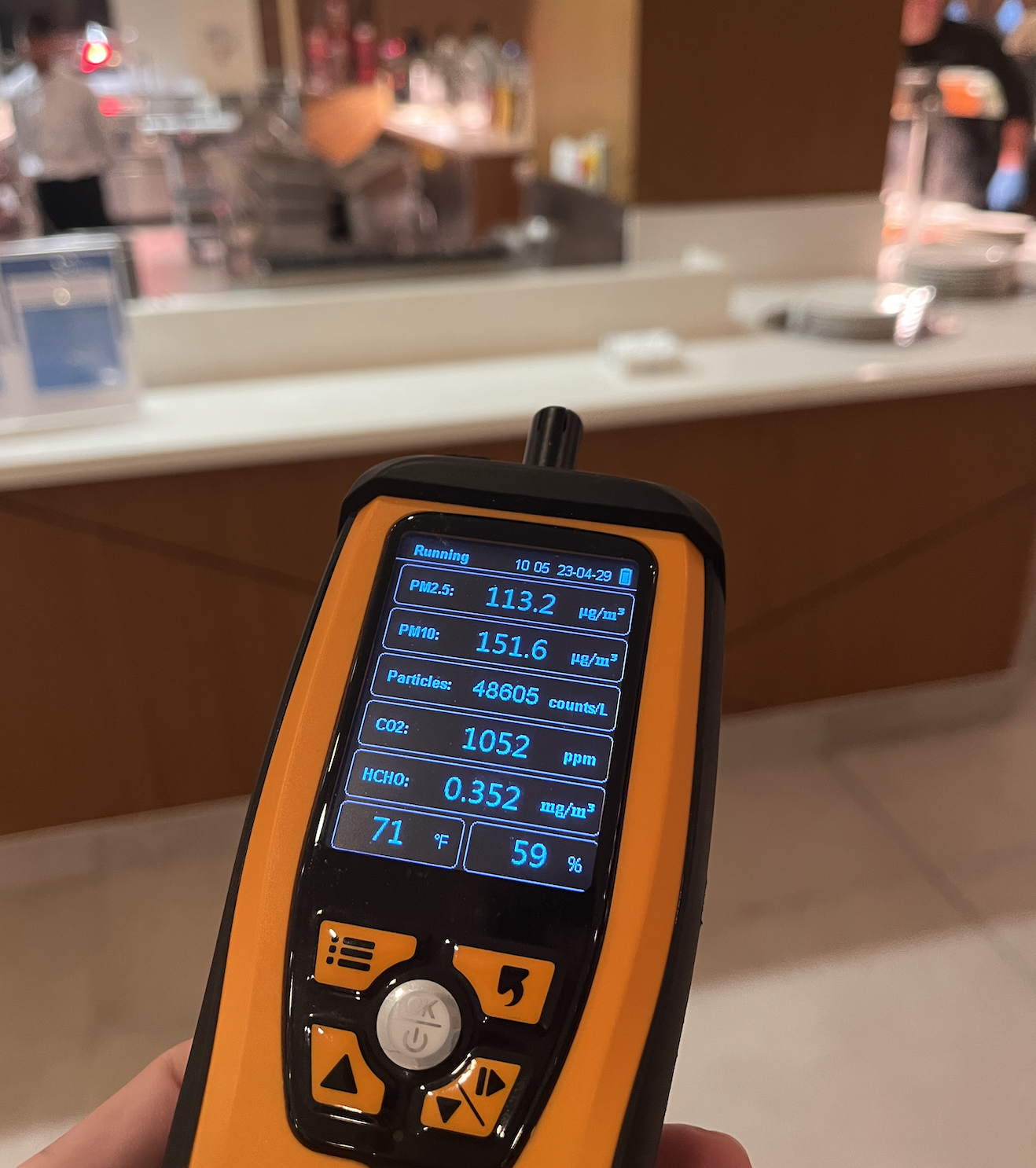

Temtop M2000 2nd Air Quality Monitor - Research Grade Assessment

This is a note that I use for myself to contextualize the accuracy of my air quality sensor. Yes, I used AI to write this out.

Look here for Air Quality Related Projects that use this sensor.

^ Sensor Specifications

Complete Sensor Array

• CO₂: Swedish SenseAir S8 NDIR (Non-Dispersive Infrared) sensor

  • Accuracy: ±50 ppm + 5% of reading
  • Range: 0-5,000 ppm

• PM2.5/PM10: Temtop Laser Particle Sensor (4th Gen)

  • Accuracy: ±10 μg/m³ (0-100 μg/m³), ±10% (100-500 μg/m³)
  • Technology: Laser light scattering

• Formaldehyde: British Dart Electrochemical sensor

  • Accuracy: ±0.03 mg/m³ (0-0.3 mg/m³), ±10% (0.3-1 mg/m³)
  • Detection limit: 30 ppb
  • Technology: Two-electrode electrochemical, diffusion principle

• Temperature/Humidity: Swiss Sensirion SHT3x sensor

  • Temperature: 0-50°C (32-122°F)
  • Humidity: 0-90% RH

Quality Comparison: Consumer Grade Standards

Industry Benchmarks for Accuracy (R-squared values)

Based on AQMD AQ-SPEC, Afri-SET, and AIRLAB testing:

Quality Tier	R² Range	Example Devices	Typical Price
Research-Adjacent	0.90-0.99	PurpleAir Outdoor (0.95+), AirBeam 2 (0.92)	$200-400
High Consumer	0.75-0.90	IQAir AirVisual (0.85), Qingping (0.82)	$150-300
Standard Consumer	0.60-0.75	Atmotube Pro (0.70), Various China brands	$100-200
Low Consumer	<0.60	Unvalidated brands	<$100

Temtop M2000 2nd Position

• No published R² values from AQMD, Afri-SET, or AIRLAB
• Claimed "tested by AQMD" but can't find evaluation certificate online
• Based on sensor quality, likely in Standard Consumer tier (0.60-0.75 R²)

> Sensor Technology Comparison

PM2.5 Sensors

Technology	Used By	Performance	Notes
Plantower PMS5003/6003	PurpleAir, AirGradient	R² 0.85-0.95	Industry standard, extensive validation
Sensirion SPS30	High-end monitors	R² 0.90+	Swiss quality, higher cost
Temtop Laser (4th Gen)	Temtop devices	Unknown R²	No independent validation found

Formaldehyde Sensors

Technology	Accuracy	Cross-Sensitivity	Validation
Electrochemical (Dart)	Good	Moderate-High	Limited studies
MOS sensors	Poor	Very High	Not research-suitable
Lab-grade (Interscan)	Excellent	Low	Research standard

> Research-Grade Assessment

✅ Strengths

• Uses reputable sensor brands (SenseAir, Dart, Sensirion)
• Electrochemical formaldehyde sensing is superior to MOS technology
• Real-time measurements capture transient peaks missed by time-averaged studies
• Data export capability for analysis
• Reasonable accuracy specifications for consumer device

❌ Limitations for Research

Calibration Issues

• No traceable calibration to NIST standards
• Requires manual outdoor calibration after storage
• Consumer devices experience drift: ±250-500 ppb (±0.3-0.6 mg/m³)
• No documented calibration protocol or frequency

Cross-Sensitivity/Interference

• Major concern: Electrochemical HCHO sensors respond to:
  • Alcohols (ethanol, methanol)
  • Acetone
  • Other VOCs present during cooking
• Gas stoves emit multiple interfering compounds simultaneously
• Cannot distinguish between formaldehyde and interfering substances

Validation Status

• No peer-reviewed validation studies found
• AQMD testing claimed but not publicly documented
• Not EPA or NIOSH certified for occupational monitoring
• Consumer-grade vs. research instruments ($3,000-10,000+)

> Critical Context for Gas Stove Measurements

What Your Device CAN Measure

• Formaldehyde: Secondary pollutant, relatively minor from gas stoves
• PM2.5/PM10: Particles from cooking (both food and combustion)
• CO₂: Human respiration + combustion product

What Your Device CANNOT Measure

• NOx/NO₂: PRIMARY pollutant from gas stoves (most health-relevant)
• Carbon Monoxide (CO): Key combustion product
• Benzene: Carcinogen from gas combustion
• Methane: Leakage indicator

> Research Usage Recommendations

✅ Appropriate Uses

• Screening tool for identifying potential problems
• Relative measurements (before/after ventilation)
• Citizen science and community awareness
• Preliminary data to justify further investigation
• Educational demonstrations of indoor air quality

⚠️ Documentation Required

• Explicitly state "consumer-grade electrochemical sensor"
• Note potential cross-sensitivity to VOCs
• Document all environmental conditions
• Acknowledge lack of research-grade calibration
• Present as "preliminary findings requiring validation"

❌ Not Suitable For

• Peer-reviewed publication as primary instrument
• Regulatory compliance monitoring
• Health risk assessments requiring legally defensible data
• Distinguishing formaldehyde from other VOCs

> Market Comparison

Superior Alternatives for Research

1. PurpleAir Zen (~$300)

   • Dual Plantower sensors, R² >0.90 for PM2.5
   • Extensive validation studies
   • BUT: No formaldehyde sensor

2. AirGradient ONE (~$200)

   • Plantower PM sensor (validated)
   • Open-source, research-friendly
   • BUT: No formaldehyde sensor

3. Professional Formaldehyde ($3,000+)

   • Interscan 4160 or equivalent
   • Research-grade accuracy
   • Minimal cross-sensitivity

Comparable Consumer Devices

• Qingping Air Monitor (~$150): Similar features, some AQMD validation
• Atmotube Pro (~$200): Portable, AQMD tested (R² ~0.70)
• Various Chinese monitors (~$100-200): Similar unvalidated status

Bottom Line

The Temtop M2000 2nd occupies a middle tier in consumer air quality monitors:

• Better than: Cheap unbranded monitors with MOS sensors
• Comparable to: Standard consumer monitors ($100-200 range)
• Inferior to: Validated monitors like PurpleAir, AirGradient
